Renomowanej firmy Labtex

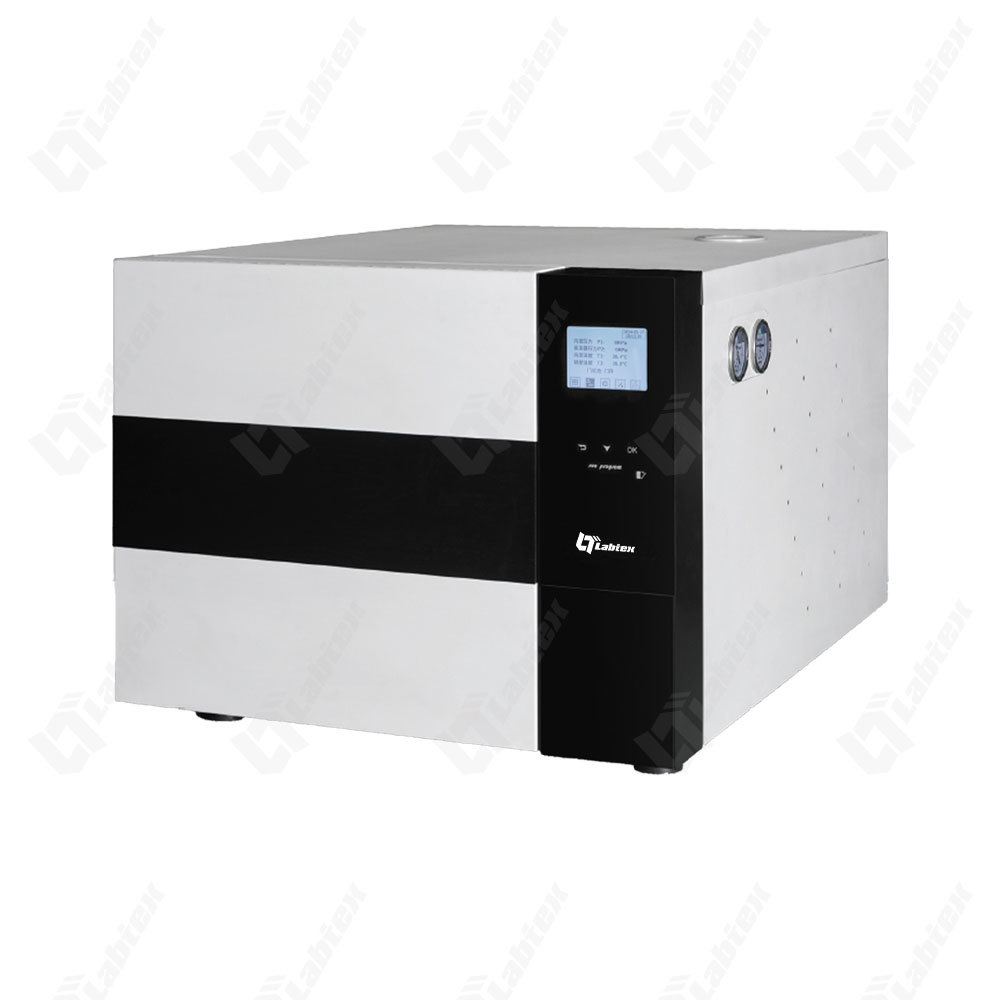

Table sterilizer is a sale and reliable B-class rapid sterilizer, the use of saturaled steam as the sterilization medium, through the way of pulsating vacuum, the saturated steam is completely penetrated to the surface of the item, so as to use the release of latent heat to kill all microorganisms, is the most reliable way of physical sterilization.
The sterilizer is suitable for medical, pharmaceutical, scientific research, stomatology, ophthalmology and other units, providing rapid sterilization for ophthalmic instruments, dental instruments, glassware, fabric dressings and other articles.
Product Use
Product Advantages
Stainless steel main structure: High-quality stainless steel main material combination, corrosion resistance, easy maintenance, long life.
Quick opening structure: Flat open quick opening structure, self-expanding seal, simple operation.
Built-in multiple programs: Built-in multiple sterilization programs for instruments, utensils, fabrics, etc.
Intelligent control system: Microcomputer program automatic control, LCD screen display working status. touch key.
Power off hold system: Power off hold function, after re-connecting the power, automatically resume from the program break point.
Safety protection system: Over-temperature protection, anti-dry burning protection, door safety inter lock, automatic pressure relief.
Over pressure protection: Automatic relief protection of safety valve when the pressure exceeds the working pressure.
Vacuum drying system: Fabric dryness is less than 1%, instrument dryness is less than 0.1%.

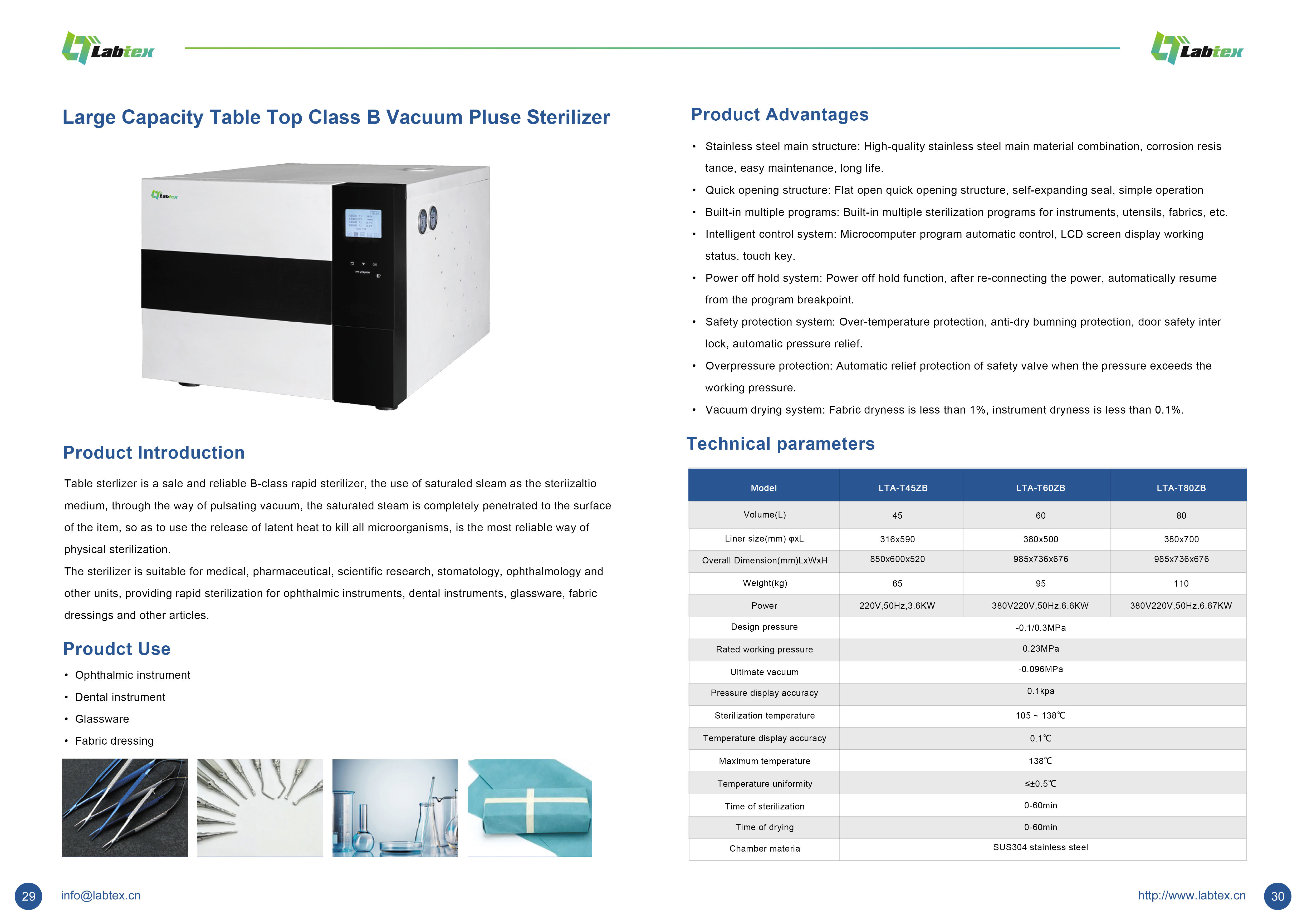

Technical parameters
Model | LTA-T45ZB | LTA-T60ZB | LTA-T80ZB |
Volume(L) | 45 | 60 | 80 |
Liner size(mm) φxL | 316×590 | 380×500 | 380×700 |
Overall Dimension(mm)LxWxH | 850x600x520 | 985x736x676 | 985x736x676 |
Weight(kg) | 65 | 95 | 110 |
Power | 220V,50Hz,3.6KW | 380V220V,50Hz.6.6KW | 380V220V,50Hz.6.67KW |
Design pressure | -0.1/0.3MPa | ||
Rated working pressure | 0.23MPa | ||
Ultimate vacuum | -0.096MPa | ||
Pressure display accuracy | 0.1kpa | ||
Sterilization temperature | 105 ~ 138℃ | ||
Temperature display accuracy | 0.1℃ | ||
Maximum temperature | 138℃ | ||
Temperature uniformity | ≤±0.5℃ | ||
Time of sterilization | 0-60min | ||
Time of drying | 0-60min | ||
Chamber materia | SUS304 stainless steel |
Pomożemy w wyborze odpowiedniego inkubatora i odpowiemy na wszelkie nurtujące pytania.
