LT-DI series Drying Oven & Incubator Double Function

LT-DI series Drying Oven & Incubator Double Function

★Vertical double air duct circulation horizontal air supply, high drying efficiency, uniform temperature distribution in theworking room.
★Digital tube display microcomputer intelligent PID temperature controller.
★Standard fan switch, high temperature blast motor, dry culture switch.
★New anti-hot handle



Drying Oven & Incubator Double Function

1. Vertical double air duct circulation horizontal air supply, high drying efficiency, uniform temperature distribution in theworking room.
2. Digital tube display microcomputer intelligent PID temperature controller.
3. Standard fan switch, high temperature blast motor, dry culture switch.
4. New anti-hot handle

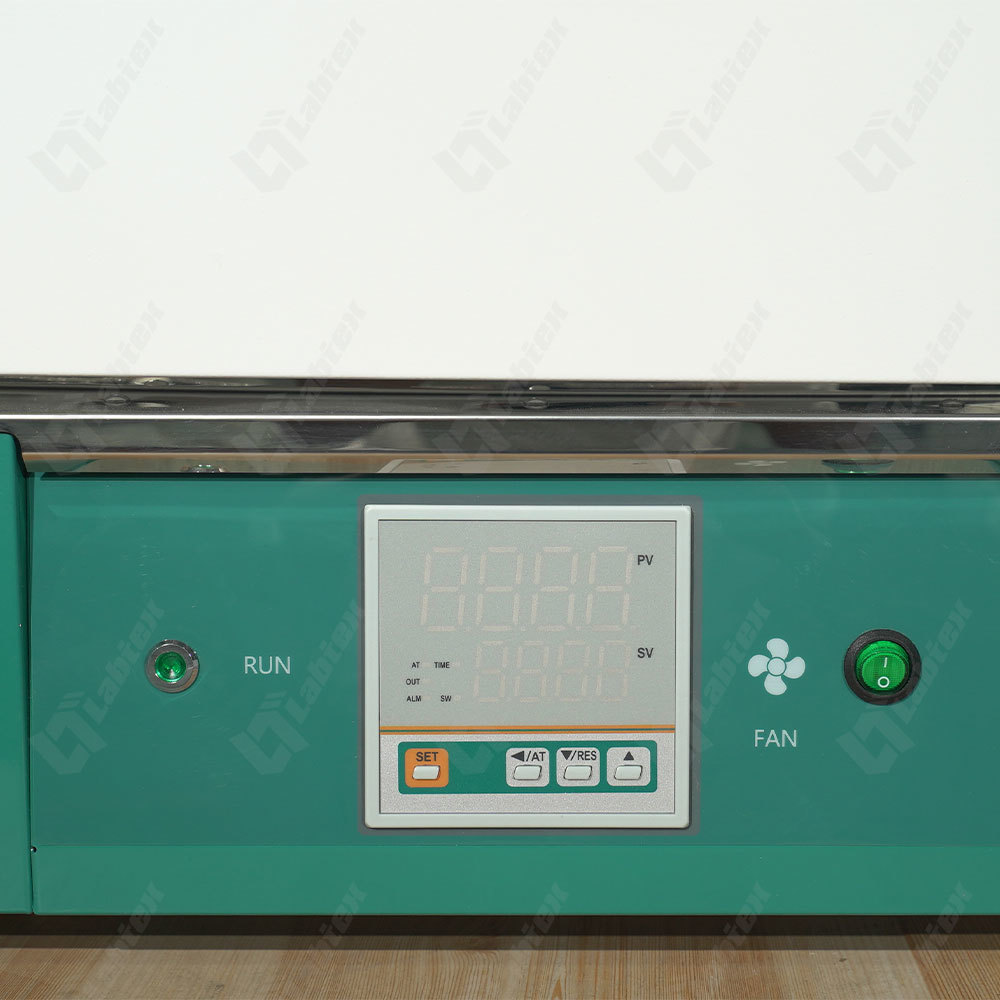

5.Temperature control instrument color LCD display, set value, measurement value, timing at the same time on the screen display.
6. The 4-speed 3-speed fan can adjust the required air volume according to the different experimental requirements of users, so as to dry or cultivate all kinds of samples.
7. Independent overtemperature protection system: When the temperature in the working room exceeds the alarm value set by the instrument, the heating main circuit is cut off to improve the safety of the product.
8. Independent temperature limiter: high precision digital display independent temperature limiter, set the studio limit temperature, to provide double security for the product.


Parameter


Model

LT-DI30

LT-DI45

LT-DI65

LT-DI85

LT-DI125

LT-DI230

Cycle Mode

Forced convection



Temp. range

Incubator:RT+5-80℃

Drying oven:80-300℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±1℃

Temp. Uniformity

±2.5%



Inner Chamber

Mirror Stainless Steel

Outer Shell

Cold rolling steel electrostatic spraying exterior 304: SUS 304 embossed stainless steel shell

Insulation layer

High quality rock wool board(with CE)

Heater

Stainless steel heater

Power rating

0.8kW

1.2kW

1.6kW

2.0kW

2.3kW

3.0kW

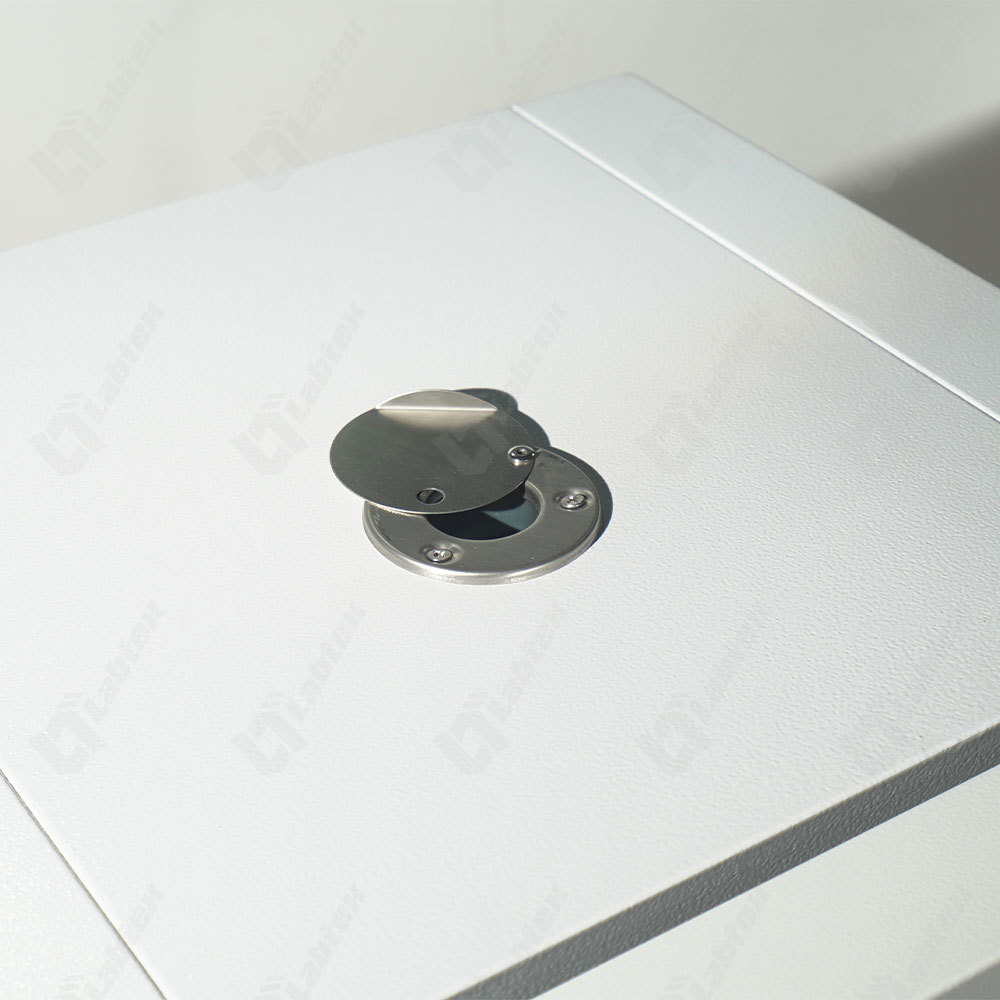

Exhaust hole

φ35mm top(with function of test hole)



Temp. control mode

PID Two temperature section intelligent PID

Temp. setting mode

Touch button setting

Temp. display mode

 LED Digital Display

Optional: LCD Digital display

Timer

0-9999min(with timing wait function)

Operation function

Fixed temperature operation, timing function, auto stop.

Additional function

 Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

Optional: High precision digital independent temperature limiter, 4 grades &3 speed adjustable speed fan (GP230B/BE without fan

speed adjustor), sensor

deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

Sensor

Pt100

Safety device

B type: Over temperature sound-light alarm

BE type: Digital independent temp. limiter, Over temperature sound-light alarm



Inner Chamber size(W*L*H)(mm)

310*310

*310

350*350

*350

400*360

*450

450*420

*450

500*450

*550

600*500

*750

Exterior size

(W*L*H)(mm)

460*510

*695

500*550

*735

550*550

*840

590*610

*830

636*680

*915

730*680

*1250

Packing size

(W*L*H)(mm)

540*575

*855

580*615

*895

635*625

*995

680*685

*1000

710*730

*1100

857*885

*1287

Volume

30L

45L

65L

85L

125L

230L

Shelf number

5

6

8

8

11

17

Load per rack

15kg

Shelf space

40mm

Current rating

AC220V/

3.6A

AC220V/

5.5A

AC220V/

7.2A

AC220V/

9.0A

AC220V/

10.5A

AC220V/

13.6A

NW/GW (kg）

33/37

37/43

44/49

50/56

60/66

94/120



Shelf

2

Shelf frame

4

optional accessories

 Spare shelf

Optional: Spare shelf, RS485 interface, printer, Program controller, remote control, U-disk storage;

wireless SMS alarm, 3.5-inch color touch screen temperature controller.
