Specifications
| |
| |
| |
| Be≥5*106 ; In≥60*106 ; U≥60*106 |
| |
SNR(Signal to Noise Ratio) | |
| ≤2 cps ( full mass range ) |
| |
| short term≤2 %;long term≤3 % |
| |
| |
| |
| ≤1×10-6low mass；≤5×10-7high mass |
Features

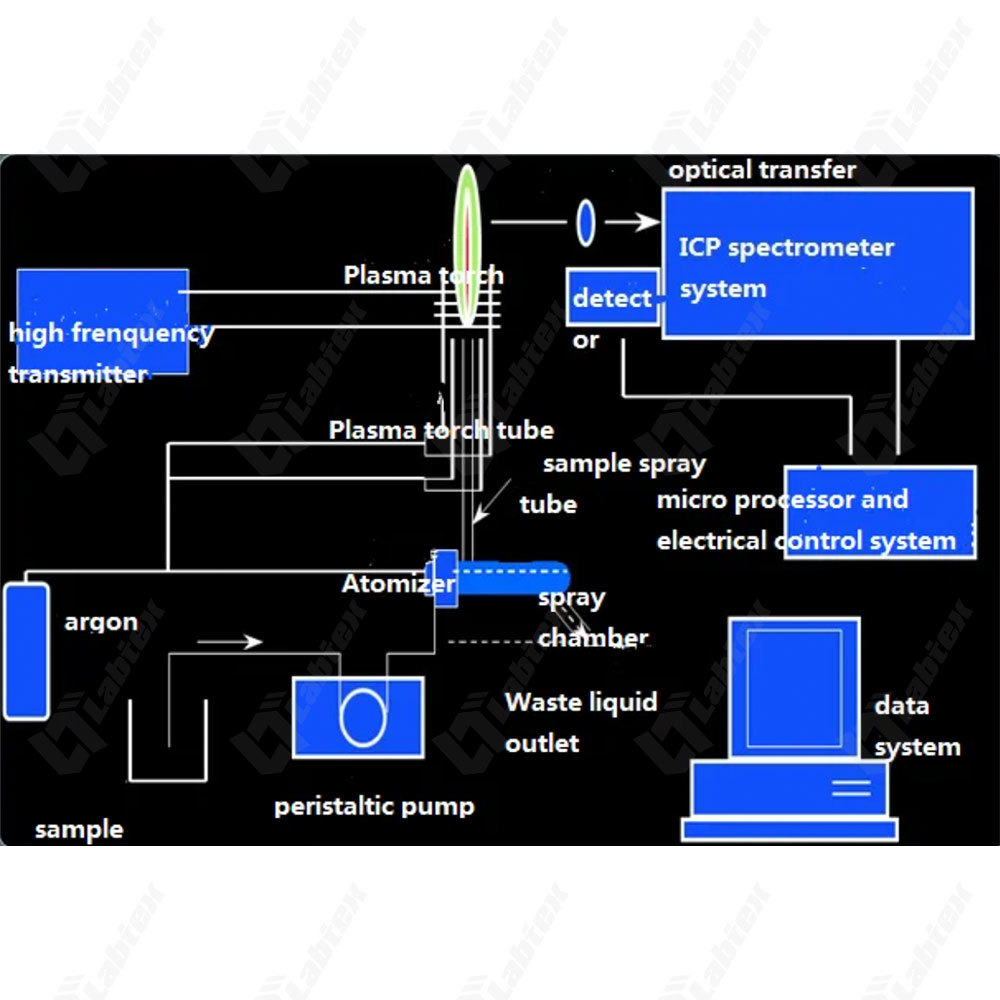

* Injection System: open- injection system architecture, using nebulizer externally mounted , self-positioning, without adjustment.
* Torch position adjustment system : full control of the computer x, y, z torch accurate three-dimensional position , all adjustment parameters stored in the analysis. Plasma shielding technology : greatly improved sensitivity , improve the detection limit of the number of elements of low quality , to ppt level
* Activities valves: computer control, protection equipment vacuum , easy disassembly and cleaning sampling and skimmer cones work in the vacuum system .
* Ion lens system : with a high efficiency hexapole ion guide system , ion transmission efficiency to get the best quality in the whole range of ion focusing automatic tuning process , the vacuum chamber of the lens using asymmetric installation , easy disassembly positioning.
* Detector : ETP dual mode detector , without digital / analog switch .
* The new vacuum chamber structure : the cavity without any wires , each component asymmetric installation and plug-in installation.
* Power protection systems: power outage occurred in the accident , security itself off without damaging the instrument system .
* Software: Provides automatic control instruments and their accessories abilities, software encompasses a variety of analytical methods, including special isotope ratio determination and isotope dilution meth.
